OTHER BATTERY PACK TYPES

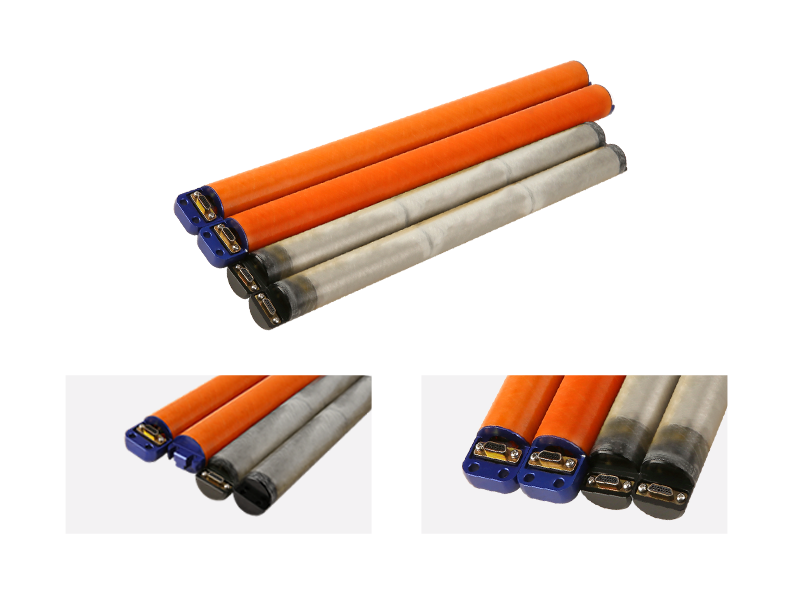

High-Temperature Li-SOCl₂ FE-3 Battery Packs
Item: FE-3 battery pack
Rated voltage: 11.0V
Nominal capacity: 9.0Ah
Maximum pulse current: 500mA
Maximum external dimension: Ф 26.5mm × 362mm
Working temperature: –40℃ ~ 150℃/180 ℃
Expand knowledge
---------------------------------------------------------------------------------------------------------
High-temperature li-SOCl2 battery packs parameter table
| Type | Voltage (V) | Capacity (Ah) | Max. Pules Current (mA) | Out Diameter/Length (mm) | Working Temperature(°C) | |
|---|---|---|---|---|---|---|
|
|
Gamma Battery Pack |
36.5 |
14 |
1000 |
38×900 mm |
-40C ~150C/180C |
|
|
JMWD-8S |
29.0 |
29.0 |
1500 |
37.5 ×1185 mm |
-40C ~150C/180C |
|
|
JMWD-10S |
28.8-29.2 |
27.0 |
1200 |
37.5 mm |
-40C ~150C/180C |
|
|
GE Battery Pack |
29.0 |
29.0 |
1500 |
37.5×1150 mm |
-40C ~150C/180C |
|
|
GE-MWD-QDT Battery Pack |
28.8-29.2 |
29.0 |
1500 |
37.5×1150 mm |
-40C ~150C/180C |
|
|
APS-MWD Battery Pack |
36.5 |
29.0 |
1500 |
37.0×1455.0 mm |
-40C ~150C/180C |
|
|
FE-3 Battery Pack |
11.0 |
9.0 |
500 |
26.5×362 mm |
-40C ~150C/180C |
|
|
UTE Battery Pack |
29.0 |
29.5 |
1500 |
37.5×1190.0 mm |
-40C ~150C/180C |
|
|
EMW Battery Packs |
14.6 |
29.0 |
1500 |
37×1805.0 mm |
-40C ~150C/180C |
|
|
Near-drill Battery Pack |
21.0 |
14.0 |
1000 |
38.0×495 mm |
-40C ~150C/180C |
|
|
T40 Battery Pack |
29.0 |
14.0 |
10000 |
30×1010 mm |
-40C ~150C/180C |
