Production Logging

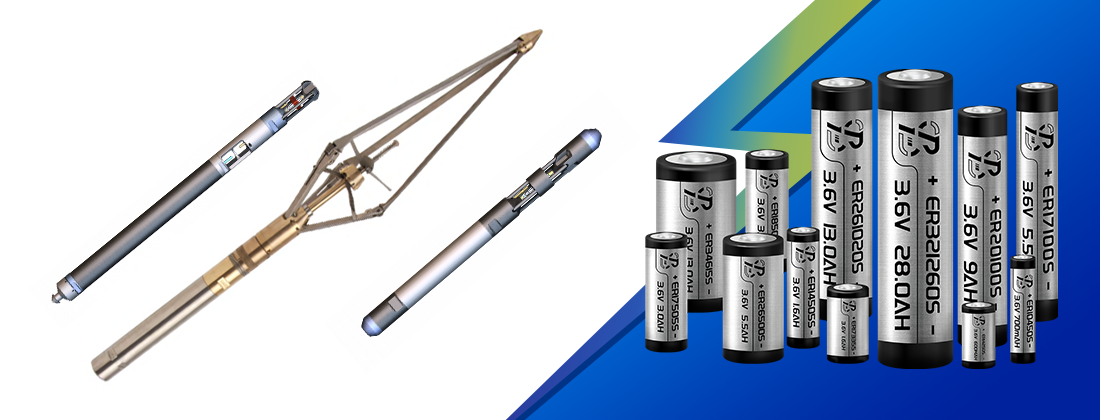

Hi-Temperature - ER Li-SOCl₂ Battery
Hi-Temperature ER Batteries for MWD/LWD TOOLS,CONTAINER TRACKING/MEDICAL DEVICE/TMPS SENSOR ETC.
| Model | Chemistry | Cell Size | Rated Current (mA) | Capacity (Ah) | Max Temp (°C) | Diameter (mm) | Length (mm) | Brochure | |
|---|---|---|---|---|---|---|---|---|---|
|
|
ER10450S |
Li/SOCI2 |
AAA |
60 |
0.6 |
150°C |
10.4 |
45.3 |
|
|
|
ER14250S |
Li/SOCI2 |
1/2AA |
100 |
0.7 |
150°C |
14.5 |
25.5 |
|
|
|
ER14505S |
Li/SOCI2 |
AA |
120 |
1.6 |
150°C/160°C |
14.5 |
50.5 |
|
|
|
ER17100S |
Li/SOCI2 |
— |
300 |
5.5 |
150°C/160°C |
17.5 |
100.5 |
|
|
|
ER17335S |
Li/SOCI2 |
2/3A |
150 |
1.6 |
165°C |
17.5 |
33.5 |
|
|
|
ER17505S |
Li/SOCI2 |
A |
220 |
3.0 |
150°C |
17.5 |
50.5 |
|
|
|
ER18505S |
Li/SOCI2 |
— |
220 |
3.2 |
150°C |
18.7 |
50.5 |
|
|
|
ER20100S |
Li/SOCI2 |
— |
200 |
9 |
150°C |
20.7 |
101.6 |
|
|
|
ER26500S |
Li/SOCI2 |
C |
500 |
5.5 |
150°C |
26.2 |
50.5 |
|
|
|
ER34615S |
Li/SOCI2 |
D |
800 |
13 |
150°C |
34.5 |
61.5 |
|
|
|
ER261020S |
Li/SOCI2 |
DD |
800 |
13 |
150°C |
26.2 |
102 |
|
|
|
ER321260S |
Li/SOCI2 |
DD |
1800 |
28 |
150°C |
32.4 |
126.5 |
|
ENERGY TYPE - ER Li-SOCl₂ Battery
(1) Bobbin Type, high capacity, shelf life is ten years;
(2) Wide operating temperature range, -55 ℃~+85℃;
(3) Smooth voltage level, 90% capacity could be outputted at a high level.
| Model | Chemistry | Cell Size | Rated Current (mA) | Capacity (Ah) | Max Temp (°C) | Diameter (mm) | Length (mm) | Brochure | |
|---|---|---|---|---|---|---|---|---|---|
|
|
ER14250H |
lithium thionyl chloride |
1/2AA |
50 |
1.2 |
85°C |
14.5 |
25.4 |
|
|
|
ER14335H |
lithium thionyl chloride |
2/3AA |
40 |
1.65 |
85°C |
14.5 |
33.5 |
|
|
|
ER14505H |
lithium thionyl chloride |
AA |
100 |
2.7 |
85°C |
14.5 |
50.5 |
|
|
|
ER17335H |
lithium thionyl chloride |
A |
100 |
2.2 |
85°C |
17.0 |
33.8 |
|
|
|
ER17505H |
lithium thionyl chloride |
A |
100 |
3.5 |
85°C |
17.5 |
50.5 |
|
|
|
ER18505H |
lithium thionyl chloride |
— |
100 |
4.0 |
85°C |
18.5 |
50.5 |
|
|
|
ER26500H |
lithium thionyl chloride |
C |
200 |
9.0 |
85°C |
26.2 |
50.5 |
|
|
|
ER34615H |
lithium thionyl chloride |
D |
200 |
19.0 |
85°C |
34.2 |
61.5 |
|
POWER TYPE - ER Li-SOCl₂ Battery
(1) High discharge rate, and you can always consult our engineer for an even higher discharge rate;
(2) Have large continuous or pulse current and considerable power output for over five years;
(3) Lower resistance, smooth voltage level.
| Model | Chemistry | Cell Size | Rated Current (mA) | Capacity (Ah) | Max Temp (°C) | Diameter (mm) | Length (mm) | Brochure | |
|---|---|---|---|---|---|---|---|---|---|
|
|
ER14250M |
lithium thionyl chloride |
1/2AA |
200 |
1.0 |
85°C |
14.5 |
25.4 |
|
|
|
ER14335M |
lithium thionyl chloride |
2/3AA |
200 |
1.3 |
85°C |
14.5 |
33.5 |
|
|
|
ER14505M |
lithium thionyl chloride |
AA |
400 |
2.2 |
85°C |
14.5 |
50.5 |
|
|
|
ER18505M |
lithium thionyl chloride |
— |
600 |
3.2 |
85°C |
18.5 |
50.5 |
|
|
|
ER26500M |
lithium thionyl chloride |
C |
1000 |
6.5 |
85°C |
26.2 |
50.5 |
|
|
|
ER34615M |
lithium thionyl chloride |
D |
2000 |
14.5 |
85°C |
34.0 |
61.5 |
|
