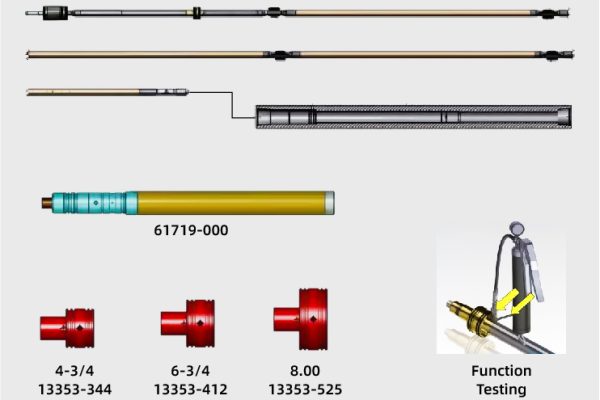

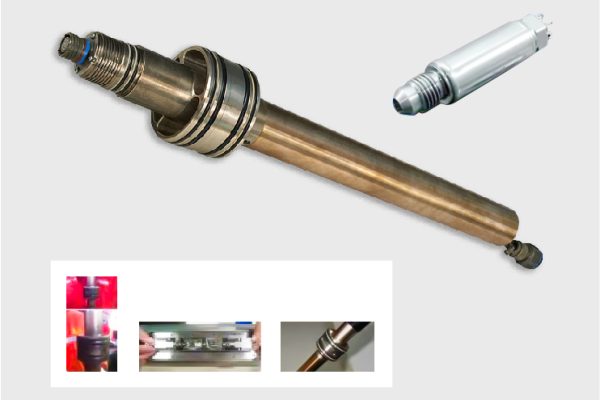

APS Series-Short Section On Pressure Measurement With Drilling Function
| Short Section On Pressure Measurement With Drilling Function | |
|---|---|
|
Size: 4.75″ → 8.0″ |
Temperature: 150°C, 175°C |
|
Pressure: 20,000psi, 25,000psi |
Resistant to harsh environments: CO, CO2, H2S |
| Surveying | ||
|---|---|---|
|
|
Range |
Accuracy |
|
Annular Pressure |
0 – 20 kpsi (137.9 MPa) |
±0.1% of FSR |
|
Drill Pipe Pressure |
0 – 20 kpsi (137.9 MPa) |
±0.1% of FSR |
|
Resolution |
1.0 psi (6,895 Pa) |
|
|
Local Temperature Compensation |
Yes |
|
|
Data Sampling Rate |
5 seconds total (annular + drill pipe) |
|
|
Data Storage |
Raw and compensated data are time-stamped and stored in SureShot memory. |
|
| Environmental | |
|---|---|
|
Operating Temperature |
-13° to 347°F (-25° to 175°C) |
|
Maximum Pressure |
20 kpsi (137.9 MPa) |
