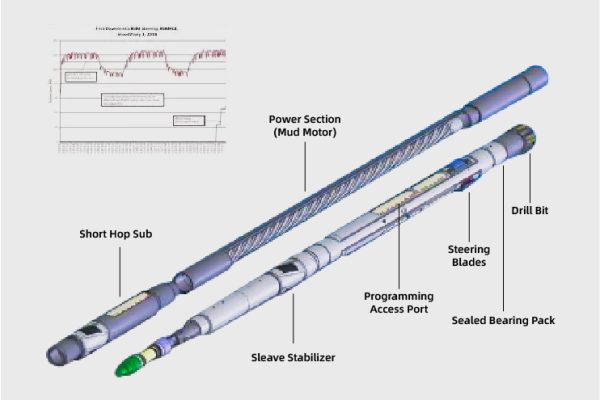

APS Series-Rotary Guide Drilling Tools-A
| Rotary Guide Drilling Tools-A | |
|---|---|
|
Tool size: 6.75″ |
Borehole size: 8.5″, 8.75″ |
|
Temperature: 150°C |
Pressure: 20,000 Psi |
|
Principle: Push-Pull |
Pushing pressure: 1000 psi |
|
Screw speed: 100-175rpm |
Turntable speed: 20-80rpm |
|
4 Modes: VDM, RSM, TAH, DIS |
Slope-making capacity: DLS≤6°/30m |
|
Integrated Screw Power & Integrated Alternator |
Displacement: 300-600 gpm (19l/s → 39l/s) |
|
Pressure drop: 250 psi @ 600 MPa (172MPa @ 37 L/S) |
|
| Features & Benefits |
|---|
|
All rotating, anti-jamming, high safety |
|
Integrated screw power, high mechanical drilling speed |
|
Electromagnetic wave short transmission and MWD communication |
