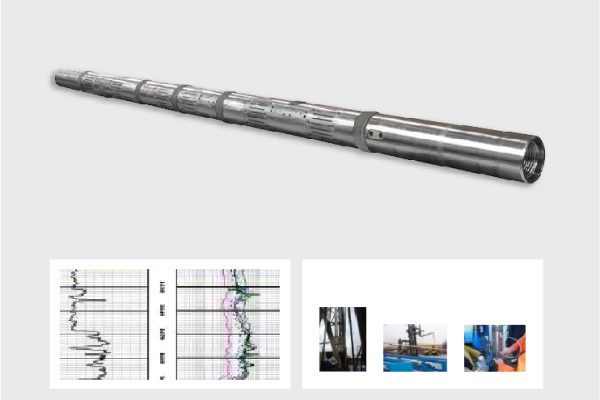

APS Series-Electromagnetic Wave Resistivity With Drilling
| Electromagnetic Wave Resistivity With Drilling | |
|---|---|
|
Size: 3.5″ → 8.0″ |
Temperature: 150°C, 175°C |
|
Pressure: 20,000psi, 25,000psi |
Material: P550, IN718 |
|
Connection: TMC, MC |
Operating frequency: 400KHz, 2MHz |
|
Resistant to harsh environments: CO, CO2, H2S |
Detection distance: 1.93m, resolution: 8in |
|
Measuring range: 0.1→4000 ohm-m |
|
| Scope of Application | |
|---|---|
|
Alternative to cable logging |
Pore pressure trend analysis |
|
Geological direction finding |
Casing depth selection |
|
Provides real-time spatial compensation, dual-frequency |
Equal cable logging quality curves |
|
Integrated pressure measurement capability with drilling |
Real-time or post-drill retest capability |
|
Symmetrical arrangement, four-shot, two-receiver resistivity curves |
|
