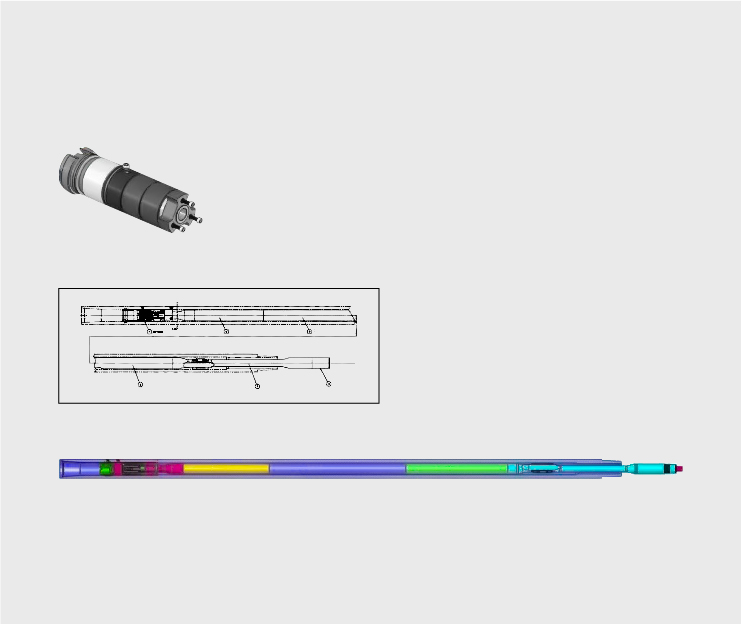

APS SERIES
Ultra Small Borehole Tool
3.125" Pulser For 4.125" Hole
Standard 3.5" pulser for 4.75" borehole
3.125'' pulser for 4.125'' old well sidetrack drilling
......

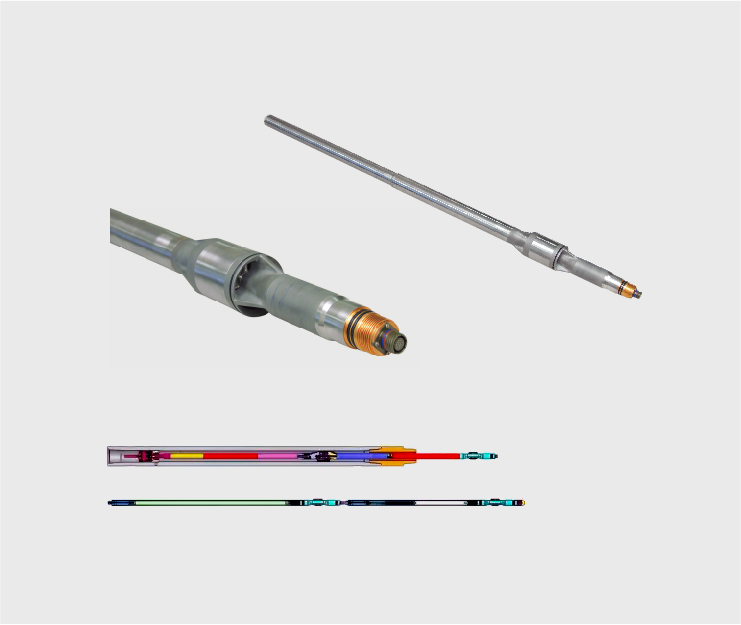

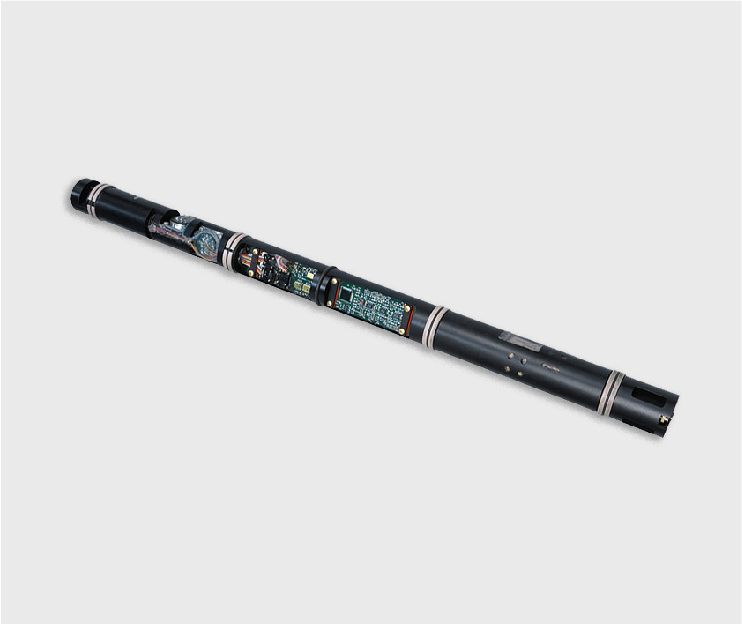

Directional Measuring Unit
Size: 24" long, 1.42" diameter
Voltage: ±14VDC
Operating Temperature: 150°C - 175°C
Power consumption: <1.7w@25°C
......
Downhole Power Supply Mode
Full size: 4.75" → 9.5"
Temperature: 150°C, 175°C
Pressure: 20,000psi, 25,000psi
Resistant to harsh environments: CO, CO₂, H₂S
......

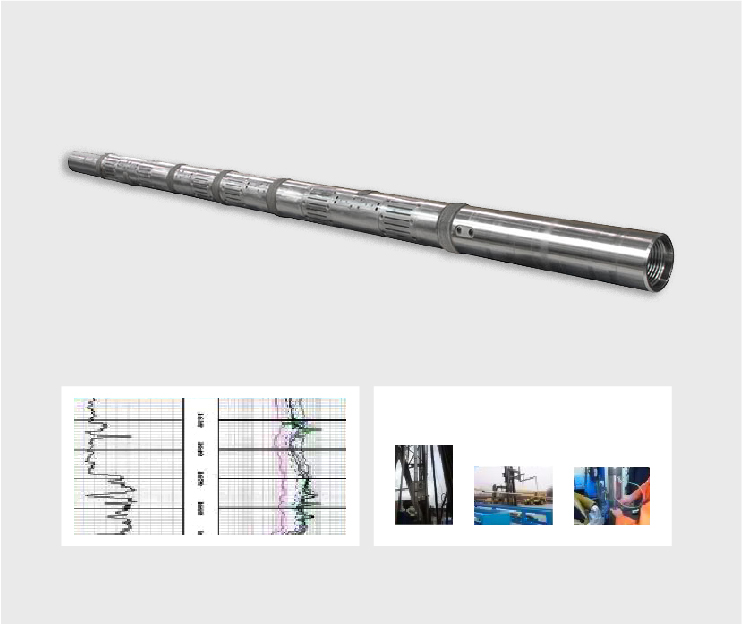

Electromagnetic wave resistivity with drilling
Size: 3.5" → 8.0"
Temperature: 150°C, 175°C
Pressure: 20,000psi, 25,000psi
Material: P550, IN718
......
Density & Porosity Measurement Tools
Size: 4.75" → 8.0"
Temperature: 150°C, 175°C
Pressure: 20,000psi, 25,000psi
Resistant to harsh environments: CO, CO₂, H₂S
......

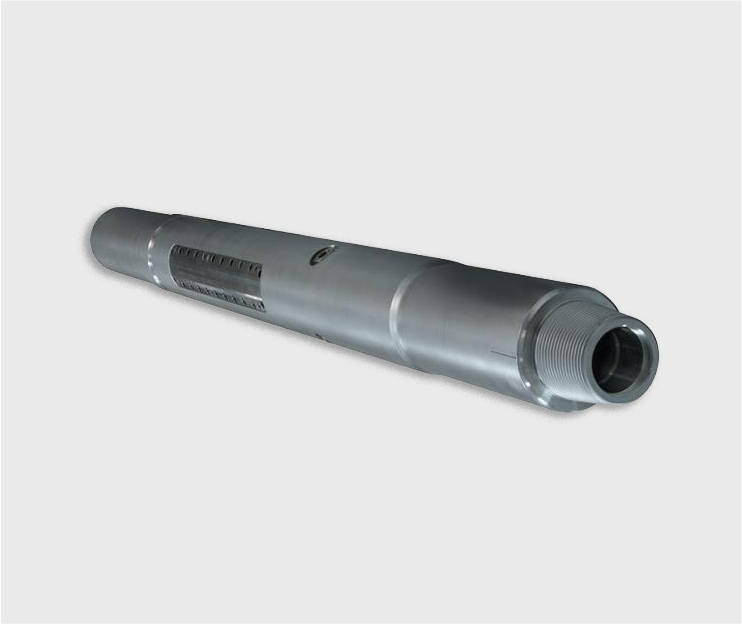

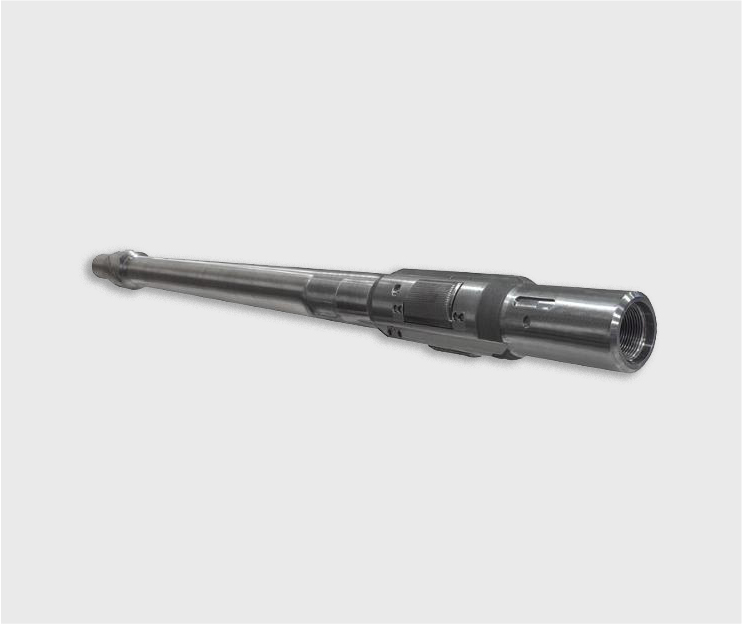

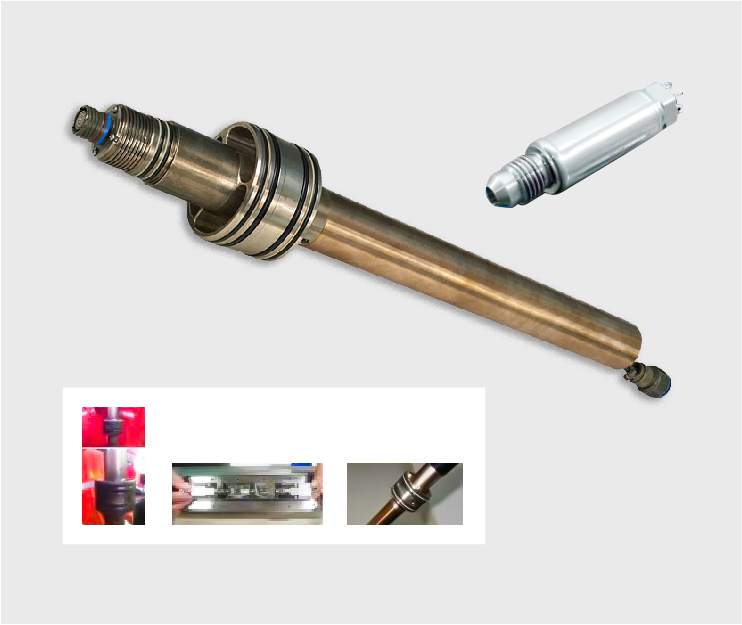

Short Section On Pressure Measurement With Drilling Function
Size: 4.75" → 8.0"
Temperature: 150°C, 175°C
Pressure: 20,000psi, 25,000psi
Resistant to harsh environments: CO, CO₂, H₂S
......
Azimuthal Gamma
Full size: 4.75"，6.75"，8.0"
Temperature: 150℃，175℃
Pressure: 20,000Psi，25,000Psi
Resistant to harsh environments: CO, CO₂, H₂S
......

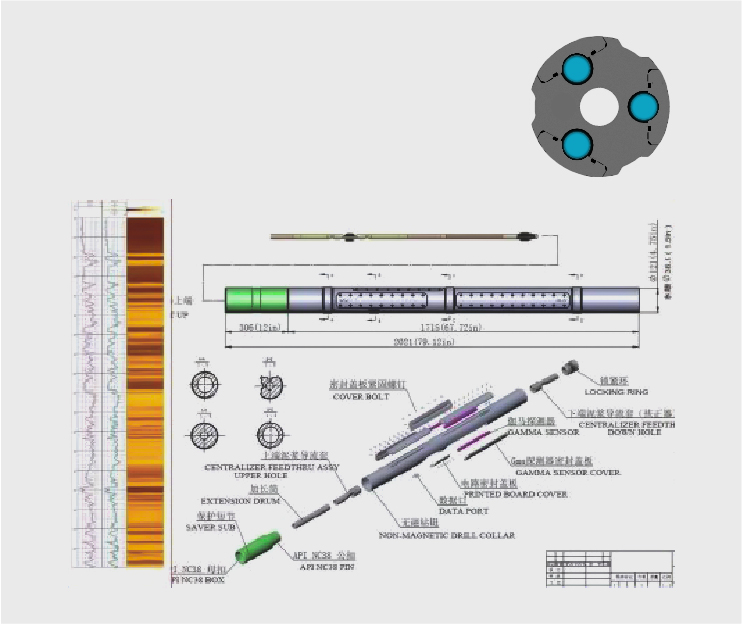

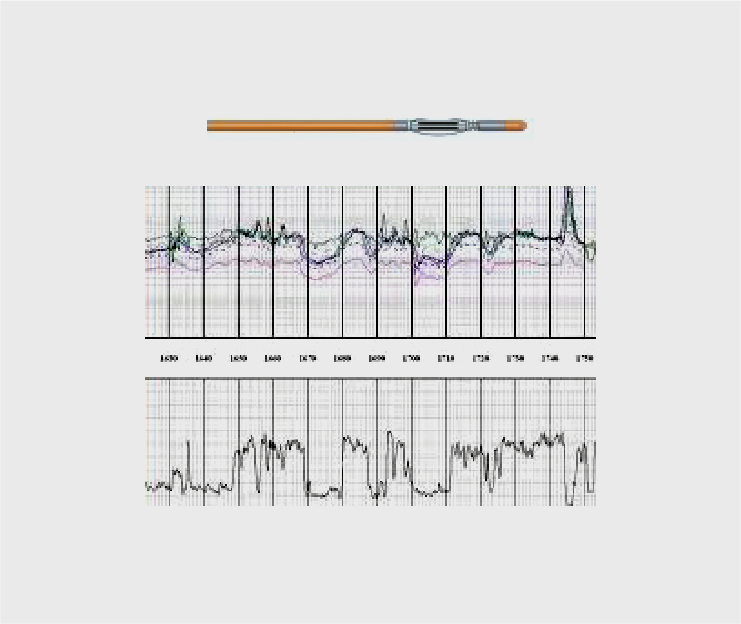

Natural Gamma (LWD)
Size: 3.125" - 9.5"
Probe Size: 1.875" (48mm)
Temperature: 150°C，175°C
Depth of detection: 6in (152mm)
......

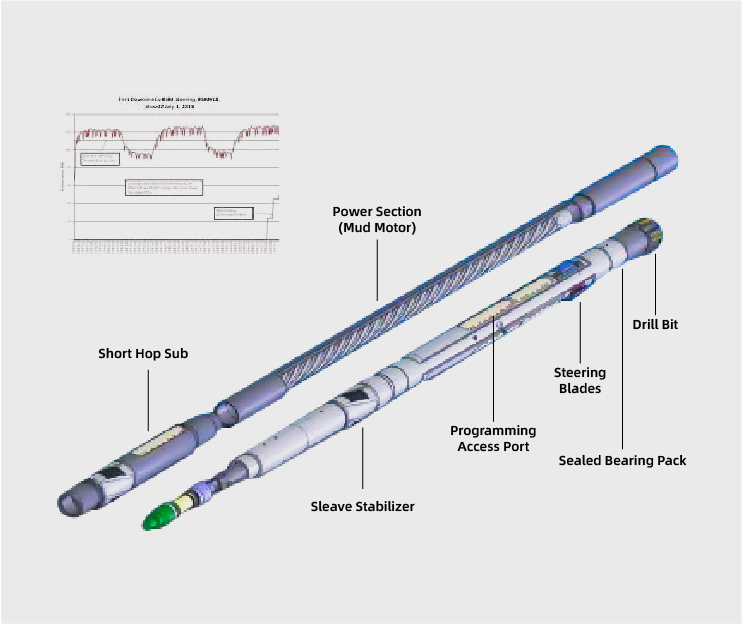

Rotary Guide Drilling Tools-A
Tool size: 6.75"
Borehole size: 8.5", 8.75"
Temperature: 150°C
Pressure: 20,000 Psi
......
Rotary Guide Drilling Tools-B
Tool size: 4.75"
Borehole size: 6.0", 6.75"
Temperature: 150°C
Pressure: 20,000 Psi
......

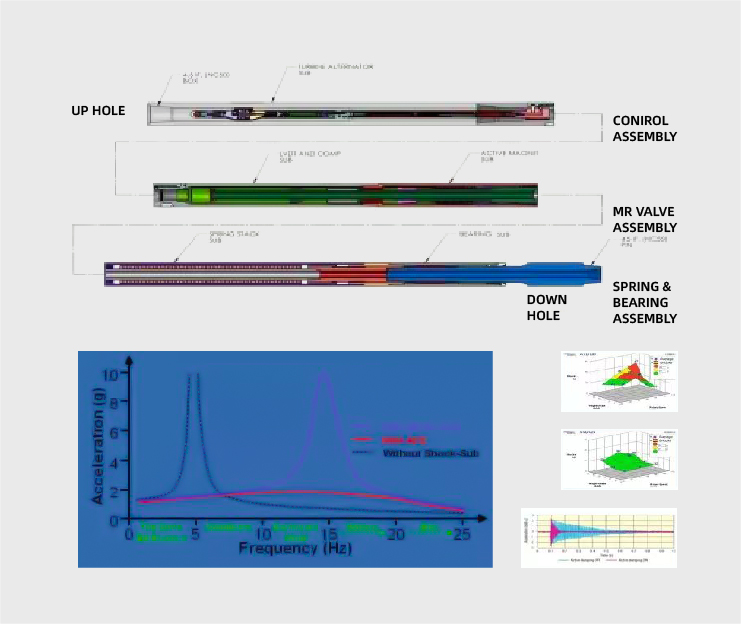

Short Section On Vibration Monitoring
Size: 4.75", 6.75", 8.00"
Pressure: 20,000 Psi
Temperature: 150°C
Torsional vibration: ±18,000°/s
......

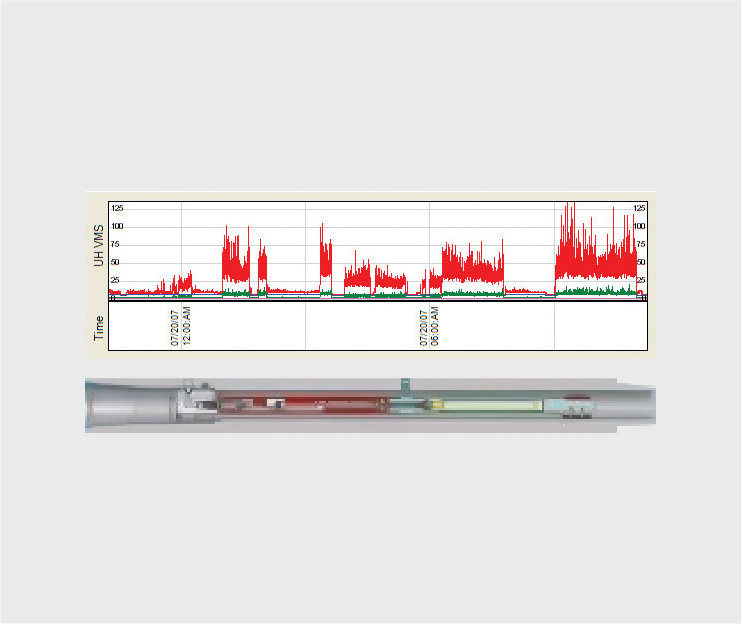

Short section on monitoring of drilling parameters
Size: 4.75", 6.75", 8.00"
Temperature: 150°C, 175°C
Provide the true torque value of the near drill bit
......
